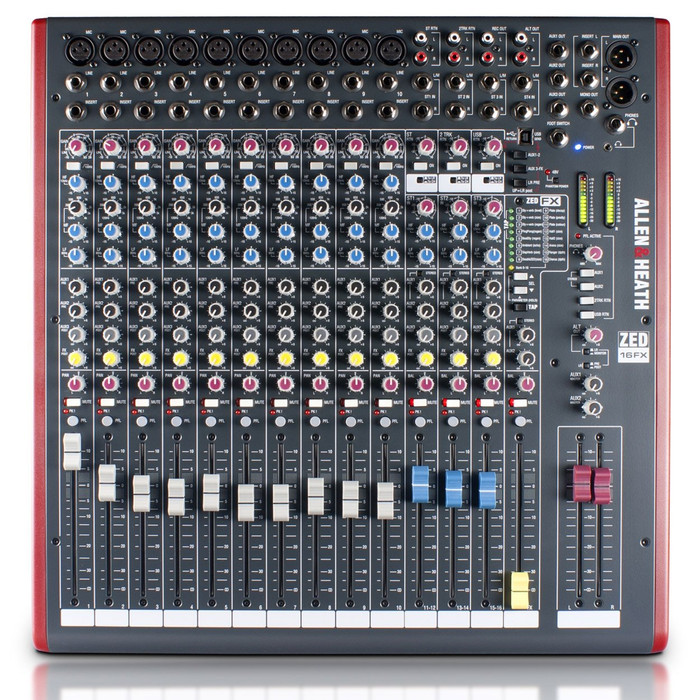

The Allen and Heath ZED-16FX Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-16FX features 16 inputs comprised of 10 mono and 3 stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. The ZED-16FX features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included. In addition to all this, the mixer's internal effects engine delivers up to 16 high quality effects for recording and live sound reinforcement.
- 16 time-delay effects, designed for small groups who don't want to carry around an effects unit with their gear, but still want great quality FX at their gigs and on their recordings.
- A USB connection provides direct connection to Mac and Windows computers. Sonar LE recording software is also included.
- There are 10 mono channels with line and microphone input connections.
- The Three stereo channels feature stereo-paired 1/4" phone connectors for stereo devices such as recorders, effects, keyboards, etc.
- ZED-16FX features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ - with optimized slope (or Q factor) for equalizing individual instruments.
- Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.
- The main output section feature a pair of balanced XLR connectors.
Key Features
- 10 mono mic/line inputs
- 3 stereo channels with 2-band EQ
- 16 internal time-delay effects
- Neutrik mic XLRs
- Neutrik 1/4 inch jacks
- Channel insert
- Super wide gain DuoPreTM mic line input
- 3 band EQ with MusiQ
- 4 auxes
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Mono/stereo function on auxes 1&2
- Monitor output section
- Alt stereo output source
- Configurable USB stereo audio in/out
- Cakewalk SONAR X1 LE bundled with mixer
- Rack ears available
