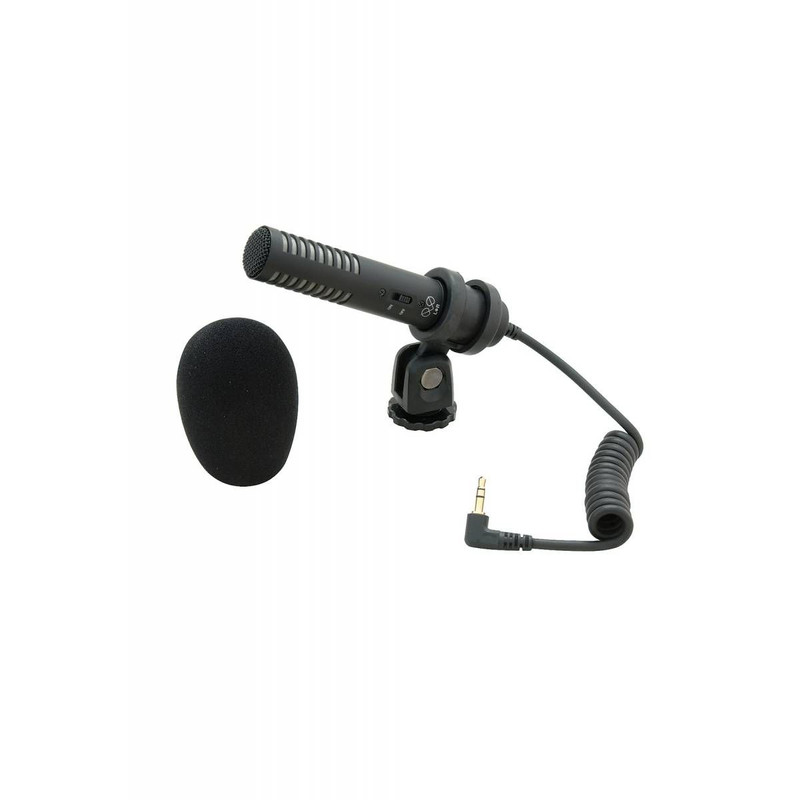

The PRO24-CMF camcorder microphone is a lightweight, compact stereo condenser ideal for digital recording with high-fidelity stereo sound. Equipped with a windjammer, accessory shoe and permanently attached coiled cable, the microphone features a pair of cardioid elements in an X-Y configuration to provide the spatial impact and realism of a live sound field. The microphone is designed for either battery operation or battery-free operation when used with camcorders that provide plug-in power at the mic input. Like all Audio-Technica mics, the PRO24-CM is rugged; it's built to endure the rigors of field production.
Highlights
- Stereo microphone designed to attach to a camcorder
- For camcorders with an accessory shoe and stereo microphone input
- Lightweight, portable design with rugged all-metal construction
- Pair of cardioid condenser elements provides spatial impact and high-fidelity stereo sound image
- Battery-free operation when used with recording devices that provide plug-in power at the mic input
- On/off switch for convenient operation
- Includes camera-mount, windscreen, windjammer, battery and protective pouch
- Permanently attached 6""-12"" coiled cable with right-angle molded 3.5 mm stereo mini plug at output end
Technical Specifications
- Polar Pattern: X/Y Stereo
- Frequency Response: 100-17,000 Hz
- Open Circuit Sensitivity: -50 dB (3.1 mV) re 1V at 1 Pa
- Impedance: 600 ohms
- Maximum Input Sound Level: 119 dB SPL, 1 kHz at 1% T.H.D.
- Dynamic Range: 82 dB, 1 kHz at Max SPL
- Signal to Noise Ratio: 57 dB, 1 kHz at 1 Pa
- Battery Type: 1.5V LR44
- Battery Current Life: 0.6 mA / 200 hours typical
- Switch: On/off
- Weight: 3.9 oz (111 g)
- Dimensions: 4.59"" (116.5 mm) long, 0.83" (21.0 mm) maximum body diameter
- Output Connector: 3.5 mm stereo mini plug on cable
- Cable: Permanently attached 152.4 mm - 304.8 mm (6""-12"") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end
Whats In The Box
- Video-camera shoe mount
- LR44 battery
- windscreen
- Fur windjammer
- AT8123
- Soft protective pouch
