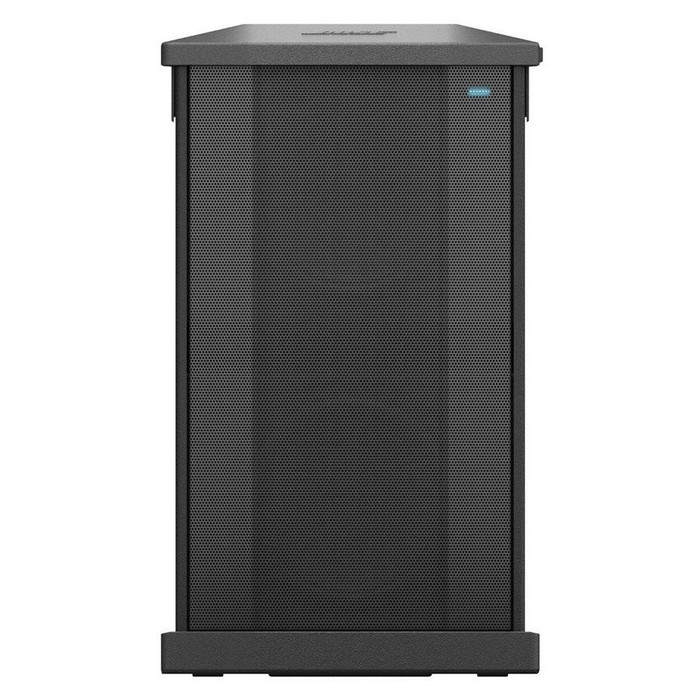

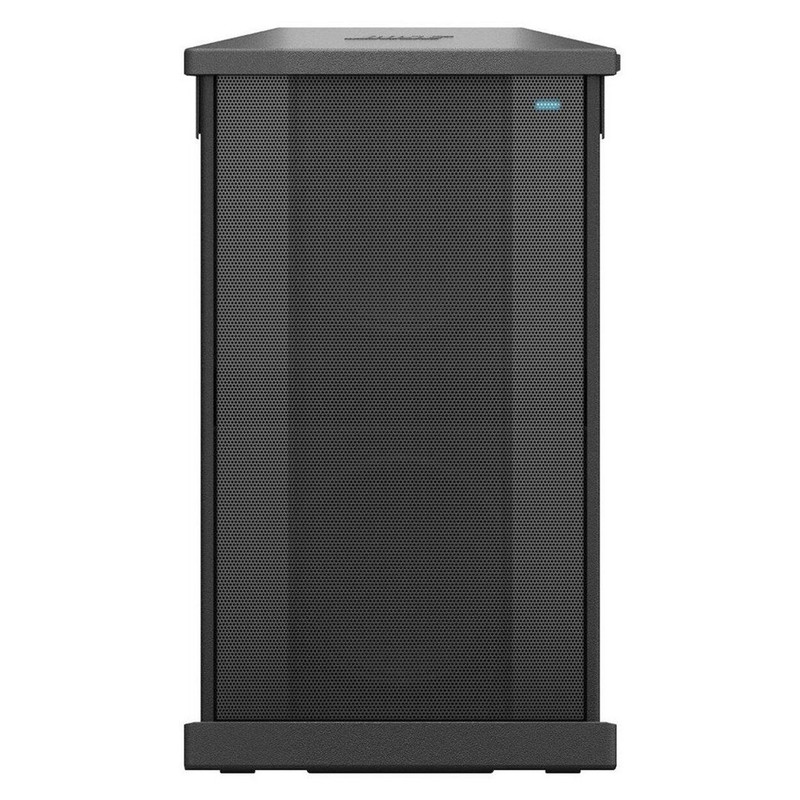

Bose F1 Subwoofer High Performance Subwoofer

Pack a punch

Looking to extend the low-end of your Bose F1 system? You're in the right place. The Bose F1 Subwoofer is the ultimate choice for enhancing the bass performance of your PA system. With two 10'' high-excursion drivers in a precision-crafted, ultra-lightweight enclosure driven by a 1000W amplifier module, you can add phenomenal impact and definition to your sound.

Built for systems

When pairing with the F1 Model 812 Flexible Array Loudspeaker, simply raise the integrated extension bracket for quick and easy stacking. All without the need for an extra speaker pole or tripod stand. It's simple to build a professional system that gives you the performance you deserve.

Highlights

• 1000W subwoofer from the revered Bose F1 family
• All the performance of a large subwoofer in a much more compact design
• Two 10'' high-excursion drivers inside a lightweight, portable enclosure
• Polarity switch with NORM and REV options for correcting LF overlaps
• Lint output EQ sets the output to a high-pass filter or full-range
• Easy crossover selection when used with your main loudspeaker
• Ideal for bands, solo musicians, DJs, venues, presentations, and more
• Extension bracket integrated into the subwoofer eliminates the need for poles or tripods

Technical Specifications

• Frequency Response: 40 Hz - 250 Hz (-3 dB)
• Frequency Range: 38 Hz - 250 Hz (-10 dB)
• Maximum SPL: 130 dB (peak 6 dB CF) at 1 m
• Crossover Frequency: 40-100 Hz Butterworth bandpass, 100 Hz 4th order Butterworth HPF at Line Out
• System Power: 1000 W (0.1-percent max distortion at rated power, 30 Hz - 15 kHz)
• Limiter: Dynamic
• Transducers: 2 x 10'' high-excursion drivers
• Input Connections: 2 x XLR-1/4'' combo
• Controls: Volume level, Front LED function select, Power ON/OFF, Polarity select, Line output EQ
• Output: XLR, balanced
• Enclosure: Wood cabinet with high-impact composite end caps
• Grille: Powder-coated perforated steel
• Power Supply: 100-240 V, 50/60 Hz
• Dimensions: 688 mm x 410.16 mm x 448.5 mm (H x W x D)
• Weight: 24.9 kg
