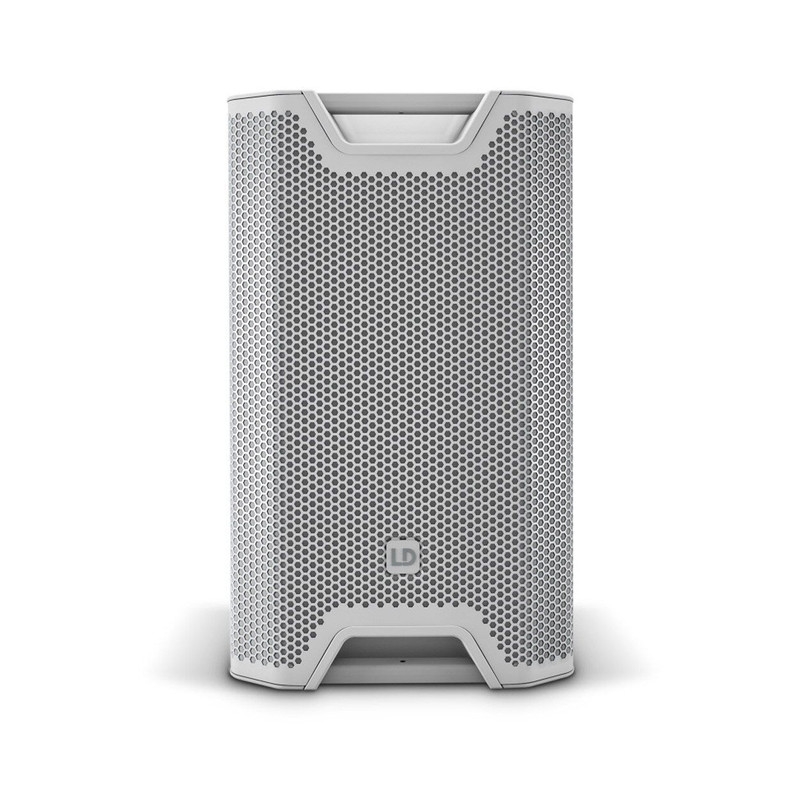

LD Systems ICOA 12 A White (Single) 12" Powered Coaxial PA Loudspeaker
Finance is available on orders over £600
18+, T&C apply, Credit subject to status.
Enjoy peace of mind at no extra cost
Key Info
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.
Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Highlights
- A genuine all-rounder for full-range, satellite and monitor applications
- 126 dB max. SPL and 1200 W peak power
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
- 6 x M10 flying points
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Technical Specifications
- Product type
- PA loudspeaker
- Type
- Powered
- Color
- White (RAL 9003)
- Low/mid Woofer dimensions
- 12 "
- Woofer dimensions (mm)
- 304.8 mm
- Woofer magnet
- Ferrite
- Woofer brand
- Custom-made
- Horn
- BEM optimized CD Horn
- HF driver dimensions
- 1 "
- HF driver size
- 25.4 mm
- HF driver magnet
- Ferrite
- HF driver brand
- Custom-made
- HF driver voice coil
- 1.4 "
- HF driver voice coil
- 35 mm
- Amplifier
- Class D
- Dispersion (H x V)
- 90° x 50°
- System Power (RMS)
- 300 W
- Peak power
- 1200 W
- Frequency response
- 50 - 20000
- Crossover frequency kHz
- 2 kHz
- Max. SPL (Peak)
- 126 dB
- Protection circuits
- Multiband limiter, over voltage, over-current, thermal overload
- Controls
- 2 x gain, On / off switch, Rotary/push encoder
- Indicators
- LC display
- Mic/ line inputs
- 6.3 mm jack Combination sockets (symmetrical), XLR
- Line inputs
- 1
- Line input connectors
- 3.5 mm TRS
- Line outputs
- 1
- Line output connectors
- 3.5 mm TRS
- Operating voltage
- SMPS
- Power consumption
- 150 W
- Ambient temperature (in operation)
- 0 - 40 °C
- Operating voltage
- 100 V AC - 240 V AC, 50 - 60 Hz
- Relative Humidity
- < 80 %, not condensing
- Fuse
- T4AL 250 V
- Cabinet material
- Polypropylene
- Cabinet construction
- Bass Reflex
- Mounting
- 36mm flange (0°, 5°), 6 x M10 flying points
- Monitor angle
- 55 °
- Width
- 375 mm
- Height
- 635 mm
- Depth
- 396 mm
- Weight
- 19,95 kg
- Accessories (included)
- Power cord
- SKU:
- LDICOA12AW
- Model Name:
- ICOA 12 A White (Single)
- Brand:
- LD Systems
