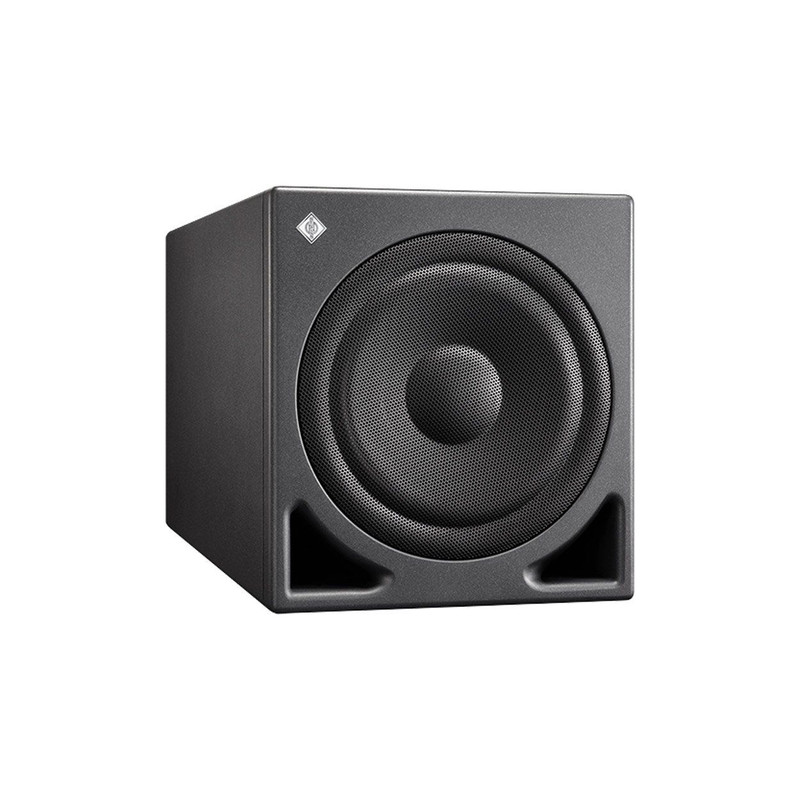

ANSWERING RISING DEMANDS FOR 7.1 AND 3D PRODUCTIONS The KH 810 is an answer to the demands by offering a 7.1 High Definition Bass Manager™. The flexibility of this bypassable 7.1 bass manager means it is also compatible with all standard consumer formats from mono through to the latest 7.1 HD systems.
Eight channels of analog ensures flexible interconnectivity for modern studios. Four-mode LFE-channel processing guarantees compatibility across all formats and industries. Forth-order crossovers and flexible acoustical controls allow for seamless system integration. Built-in volume control and a hardware remote control allows for centralized system control independent of the source, and the electronics can be remote located to reduce cabling. From Mono to 3D, there are uses for the KH 810 in many different system configurations.
IMPROVING LATERAL CONSISTENCY The latest amplifier technology and acoustical components have been used to ensure the most accurate sound reproduction possible. Robust drivers, a rock-solid cabinet, and carefully designed ports guarantee a tight, articulate, and distortion-free low frequency reproduction, even at high replay levels. Using the sum output, Plane Wave Bass Array™ (PWBA™) techniques acoustically improves lateral consistency in the listening area. The bass extends down to 18 Hz.
COMPLEMENTS EXTENSIVE RANGE OF MONITORS The KH 810 subwoofer is designed to complement Neumann's extensive range of monitors, and can be used on its own, or daisy-chained to make larger systems capable of higher SPL. The KH 810 can be used in music, broadcast, and post production studios for tracking, mixing, and mastering. The cabinet can be positioned next to a wall or flush mounted into a wall due to the front mounted port, and can be mixed freely in multichannel systems with other loudspeakers from Neumann's range.
APPLICATIONS
- Bass extension for loudspeakers down to 18 Hz
- Increasing the maximum SPL of loudspeakers by up to 8 dB
- Decreasing harmonic and intermodulation distortion of loudspeakers
- Reproducing the LFE channel
- Reproducing the “Sub” signal of a bass managed multichannel source
- Making a Plane Wave Bass Array™ system
- Working as an extension for KH line subwoofer systems
Highlights
- 7.1 High Definition Bass Management (remote)
- Very deep bass response (18 Hz)
- High maximum SPL (110.7 dB)
