TASCAM have updated their award winning DR-60D professional recorder for DSLRs. The updated model now features improved microphone preamps and gain of up to 64dB, making it suitable for quiet voices.
For years, filmmakers have been trying different methods for recording audio, using bulky recorders designed for music and trying to transform the inferior audio technology built-into DSLR's. Now TASCAM has designed an answer that pros and amateurs alike have been waiting for.

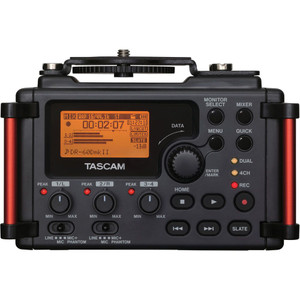

The DR-60D is a brand new 4-track solid-state recorder utilizing TASCAM's decades of experience. The recorder utilizes high-grade HDDA pre-amps, legendary AD converters, and a durable but lightweight structure and shape. This device will fit snuggly under any camera or into any rig, and record up to 96kHz/24-bit high quality audio straight to SD/SDHC media.
Filmmakers have at their disposal two 1/4"-XLR Locking Combo MIC/LINE Inputs, 3.5mm Stereo MIC Input, Camera In, Camera Out, Line Out and Headphone Out. Both 1/4"-XLR Combo Inputs supply +48V Phantom Power and the 3.5mm Input supplies Plug-In Power for microphones requiring a bias voltage.
The DR-60D is incredibly easy to use, employing TASCAM's very popular user interface and external controls for every major operation. The body structure, soft-touch keys and dials are designed specifically to help eliminate handling noise. The multiple record modes include, 4-Channel Record, Auto Record and TASCAM's Dual Record "Safety Track" Mode make the DR-60D one of the most versatile recorders on the market.
Highlights
- Record to SD/SDHC card(Up to 32GB)
- Simultaneously record up to 4 tracks
- Record Mode：MONO, STEREO, DUAL MONO, DUAL ST, 4CH
- Recording format：16/24bit、44.1/48/96kHz (WAV/BWF)
- TASCAM original HDDA microphone preamps
- Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
- New Mic level inputs with up to 64dB Gain
- Plug-in power supply and high-output mic input supported on input 3-4
- CAMERA OUT connector for output from the DR-60D's mixe
- rCAMERA IN connector for sound monitoring from the Camera
- Independent LINE OUT connector and HEADPHONE output for high-quality sound output
- 50mW/ch headphone output
- Tripod mounting threads (bottom) and DSLR screw attachment (top)
- Handles protect the screen and can be used to attach a shoulder strap
- Soft-Touch Rubber Keys for silent operation
- HOLD switch to prevent accidental operation
- A QUICK button is available for easy access to various functions
- 128x64 pixel LCD with backlight
- USB 2.0 connection for high-speed transferring
- Mini USB cable included
- Operates on 4 AA batteries, an AC adapter (sold separately) or USB bus power
- Can extend battery life with BP-6AA battery pack (sold separately)
- Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
- Internal mixer: PAN and LEVEL controls
- Low cut filter(40/80/120Hz)
- Limiter (1/L and 2/R can be selected for link-operation)
- Delay function for distance of microphones adjustments (+/-150ms)
- M-S decode function
- Slate tone generator (AUTO/MANUAL)
- Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when Auto generate)
- Selectable slate tone generate position. 3 positions: OFF/HEAD/HEAD+TAIL, when Auto generate
- File name format can be set to use a user-defined word or date
- Dual recording function allows two files to be recorded simultaneously at different levels
- Auto-record function can automatically start and stop recording at set level
- Pre-recording function allows the unit to record a 2 second sound buffer before recording is activated
- Self timer function for solo recording
- New file starts recording automatically without interruption when maximum file size is reached
- Track incrementing function allows a recording to be split by creating a new file when desired
- Jump back and play function
- Equalizers function for playback, and level alignment function to enhance the perceived overall sound pressure
- Resume function to memorize the playback position before the unit is turned off
- MARK function up to 99 points per audio track
