Yamaha Stagepas 1K MKII with Fitted Cover Portable PA System

1100W amplifier

At the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet.

STAGEPAS Controller

With an all-new interface, STAGEPAS Controller is a dedicated remote control application for the STAGEPAS 1K mkII that allows users to control volume, the 1-knob EQ or 4-band PEQ and the “Priority Ducker” via Bluetooth during rehearsal or performance.

Professional control with a single knob

STAGEPAS 1K mkII comes equipped with a wealth of sound shaping functions, including 1-knob EQ for optimized multi band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.”

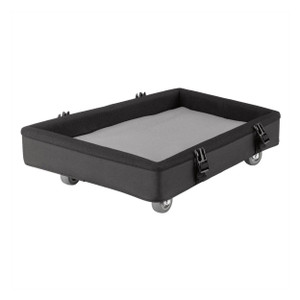

Fitted cover included

The cover protects the unit and provides pouches for both spacers and speaker array as well as additional storage for accessories.

**Expand your STAGEPAS system***

Linking a DXL1K and STAGEPAS 1K mkII provides greater coverage and increased output power for large-scale performances. Both stereo and mono playback are supported, and when the STAGEPAS 1K mkII is set to mono, the inputs of the DXL1K and STAGEPAS 1K mkII can still be used.

Technical Specifications

• 12" Subwoofer
• 10 x 1,5" Drivers
• 1100W Class-D amplifier
• (LF: 500W, HF: 600W)
• 125 dB SPL max.
• 334 x 2000 x 418 mm (W x H x D)
• Digital Mixer with 5 Channels
• Effects: Ducker, SPX-Reverb
• 23kg (max), Sub. 20kg
